| Category |
Requests |
Reflection & Consideration |
VOC Removal
Efficiency |
Over 99%
Under 25ppm(THC) |

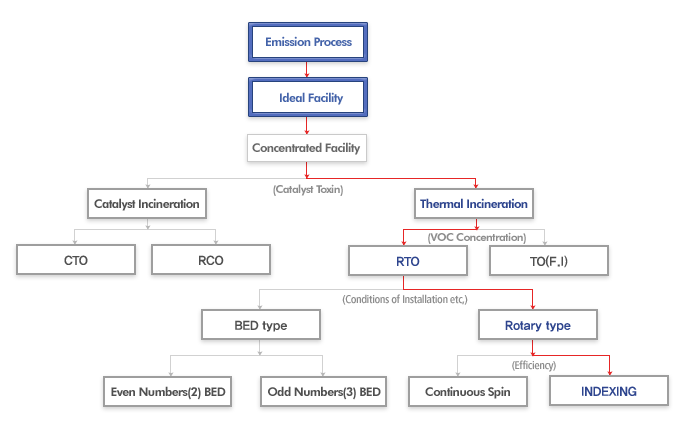

ROTARY RTO (INDEXING Operation ) Air Sealing / Purge System |

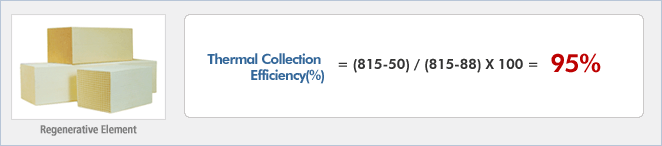

Thermal
Collection
Rate |
Loss of Over 95% of
Pressure < Minimization
of Heat Loss of 300mmAq |

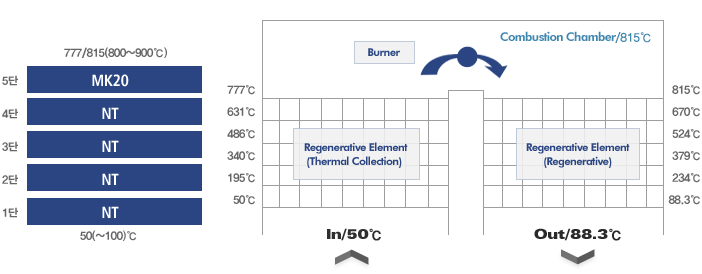

High efficiency regenerative employed, designed with 5 columns
with 43x43 cells, external surface temperature lower than 70 degrees |
Wind Quantity
Regulation |
Reduction in Operational Cost
and Fuel Cost |
Inverter(PID Operation) high efficiency fan employed |
Temperature
Regulation |
Has Taken Hot Bypass,
Proportional to the Burner |
High Turn-Down Ratio Burner employed to respond to high concentration-VOC |
Gas Flow
Fegulation |
Minimization in Change in Average |
Rotary Valve used
speed alteration by the inverter (0.15~0.25rpm) |
| TAR/Paint Mist |
Bake-Out System/Uses
Preconditioning Filter |
3-compartment wire-mesh screen with automatic bake-out by PLC at 350˚C used |
Regulatory
Facility |
PLC w/Touch Screen |
All operational status may be viewed and modified on the T.S. (Alarm Monitoring, etc.) |
